STM32G071B-DISCO

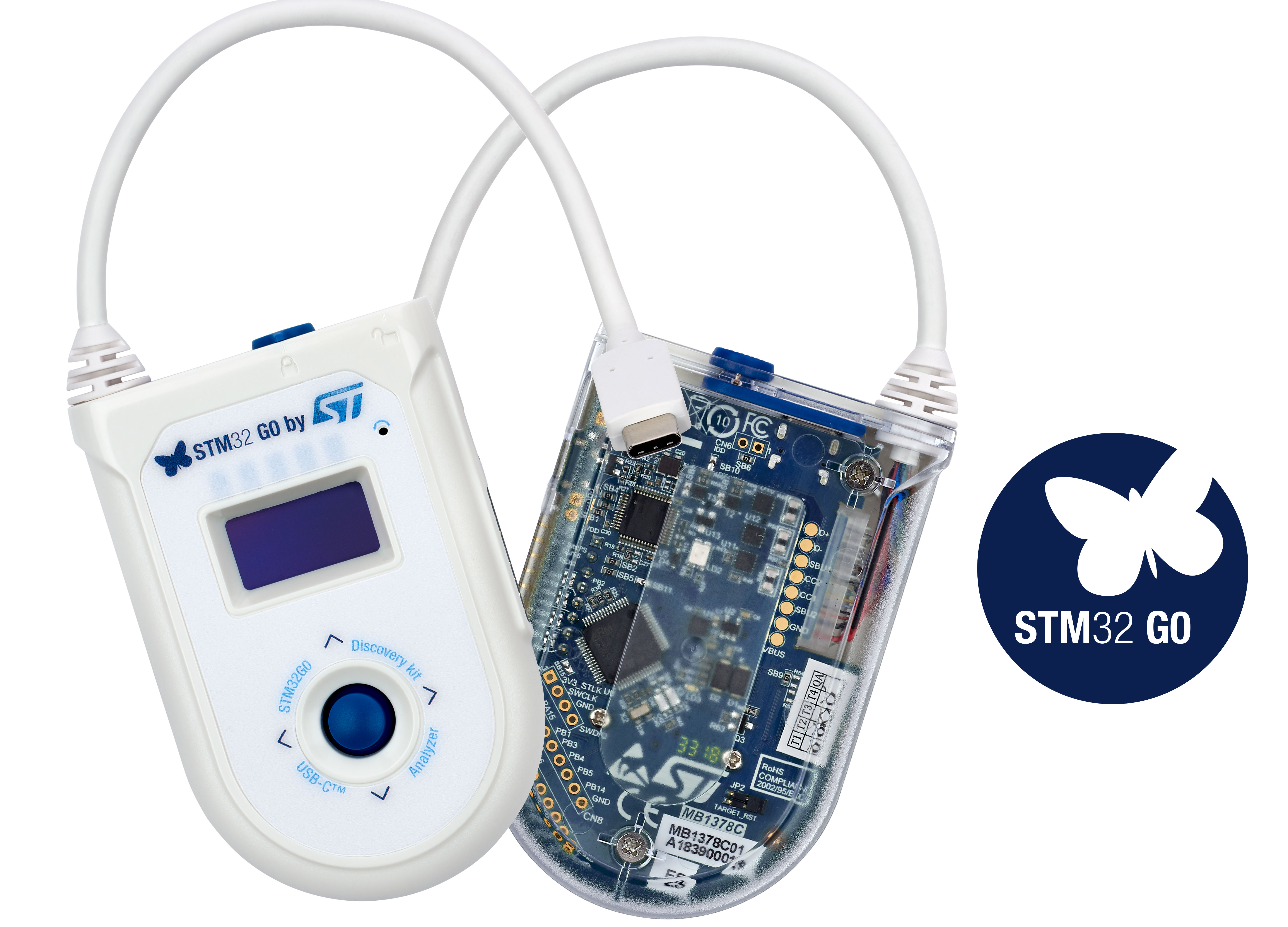

The STM32G071B-DISCO Discovery board is a demonstration and development platform for the STMicroelectronics Arm® Cortex® -M0+ core-based STM32G071RB USB Type-C™ and Power Delivery microcontroller. The STM32G071B-DISCO Discovery board is presented with all necessary interfaces for easy connection and interoperability with other USB Type-C™ devices. The STM32G071B-DISCO Discovery board is intended for discovery and display of USB Type-C™ port characteristics such as data role, power role, VBUS and IBUS monitoring.

It offers an advanced user mode when associated with the STM32CubeMonUCPD software GUI and can be used as a USB Type-C™ and Power Delivery analyzer.

主要特性

STM32G071RBT6 microcontroller featuring 128 Kbytes of Flash memory and 32 Kbytes of RAM in LQFP64 package


Plastic case


1” 128 x 64 pixels OLED LCD module with SPI interface


USB Type-C™ interface plug cable and receptacle connector accessible by door with reed sensor detection


3 bidirectional current and power monitors with I2C interface to measure VBUS, CC1 and CC2 protected and isolated lines


On-board DC/DC converter to sustain power supply with VBUS varying from 3 V to 20 V (+/- 5 %)


4 user status LEDs about USB Type-C™ configuration


3 LEDs for power and ST-LINK communication

4-way joystick with selection button


1 reset push-button


Board external connectors:

• USB Type-C™ plug cable

• USB Type-C™ receptacle connector

• 8-pin user extension connector including ADC, SPI, USART and I2C communication signals

• USB with Micro-AB (ST-LINK)

Board internal connectors:

• 2 x 8-pin GPIOs free pins from microcontroller (accessible internally when case is removed)

• USB Type-C™ test points for main signals

Flexible power-supply options: ST-LINK USB VBUS or USB Type-C™ VBUS


On-board ST-LINK/V2-1 debugger/programmer with USB enumeration capability: mass storage, Virtual COM port and debug port


Comprehensive free software libraries and examples available with the STM32Cube™ MCU Package


Support of a wide choice of integrated development environments (IDEs), including IAR™, Keil® and GCC-based IDEs
