Features
Ø 300mA Output Current
Ø Low Quiescent Current：90μA
Ø Shut-down Current: < 0.1 μA
Ø Input Voltage：1.8V～5.5V
Ø Output Voltage：1.2V～5V
Ø 0.47μF~10μF Ceramic Capacitors Ensures the Stability
Ø Overload/over Temperature Protection

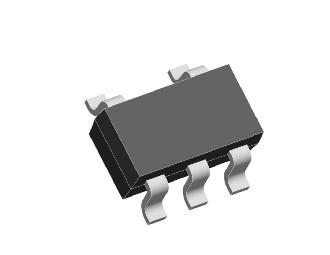

Ø Package: SOT-23-5 / SC70-5 (lead-free packaging is now available)
Ø Specified from: - 40℃ ～ + 85℃

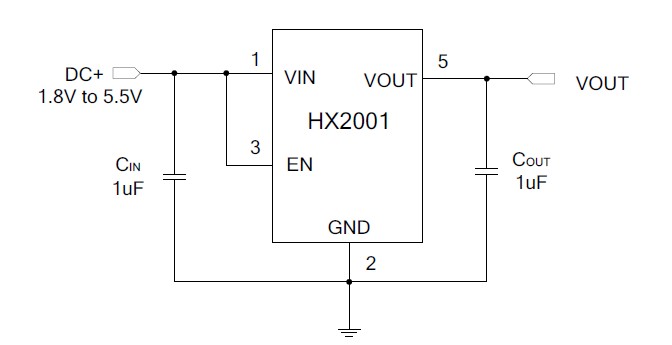

Typical Application Circuit
Description
The HX2001 is 300mA low dropout linear regulator optimized to provide a high performance solution to low power system.
The device offers a new level of cost-effective performance in cellular phones, laptop and notebook computers, and other portable devices. Proprietary design techniques ensure high performance.
The HX2001 is designed to make use of low cost ceramic capacitors which ensure the stability of the output current, and enhance the efficiency in order to prolong the battery life of those portable devices.
The HX2001 regulators are available in the industry standard SOT-23-5/SC70-5 power packages (or upon request).
Applications
Ø MP3/MP4 Players
Ø Cellular phones, radiophone, digital cameras, and portable electronics
Ø Laptop/notebook/palmtop computers
Ø Portable devices
Ø Disk driver
Ø Battery chargers
Ø Bluetooth and other radio products
